A Study on Machine vs. Human Perception of Pop Song Structure
feat. Karen Bao, Stacey Chao, Vivian Chen
Intro
Structure makes a song catchy providing a balance between repetition and variation, despite the fact that we aren’t always actively aware of it when we’re listening to the song. Songs usually consist of a few different sections: intro, verse, chorus, bridge (or transition), and outro. Sometimes it is obvious where each section ends/begins and whether a section is the chorus, verse, etc.; other times…not so much. In this project, we focus on pop songs and whether machines perceive/detect structures similar to how people detect them, especially when a song’s structure is vague even to human ears.
How We Built It
We created our program by building off of two sources of code: Oriol Nieto’s song segmenter and Vivek Jayaram’s chorus detector. For the former, we used MSAF to run a novelty-based segmentation and labeling algorithm. Specifically, this involved using the checkerboard kernel method of audio segmentation proposed by Jonathan Foote, and a 2D Fourier Magnitude Coefficients Method as proposed by Oriol Nieto and Juan Pablo Bello. Running this algorithm on the song gives the perceived segments of a song and generic segment labels (1, 2, 1, 2, 3, etc.).

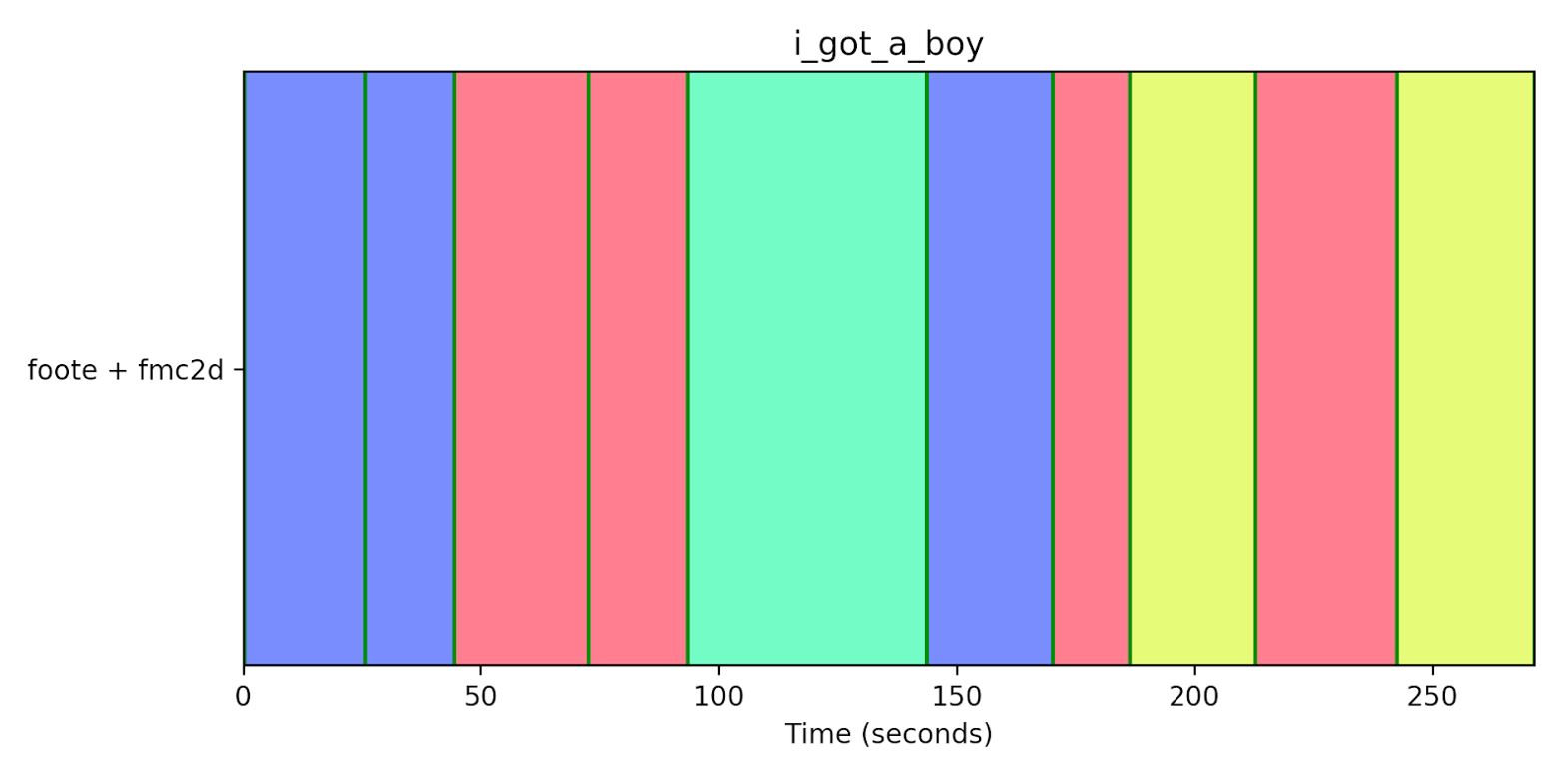

Segments and labels determined for SNSD’s song “I Got a Boy”. The lines represent each perceived song segment, while the colors represent each perceived segment label.

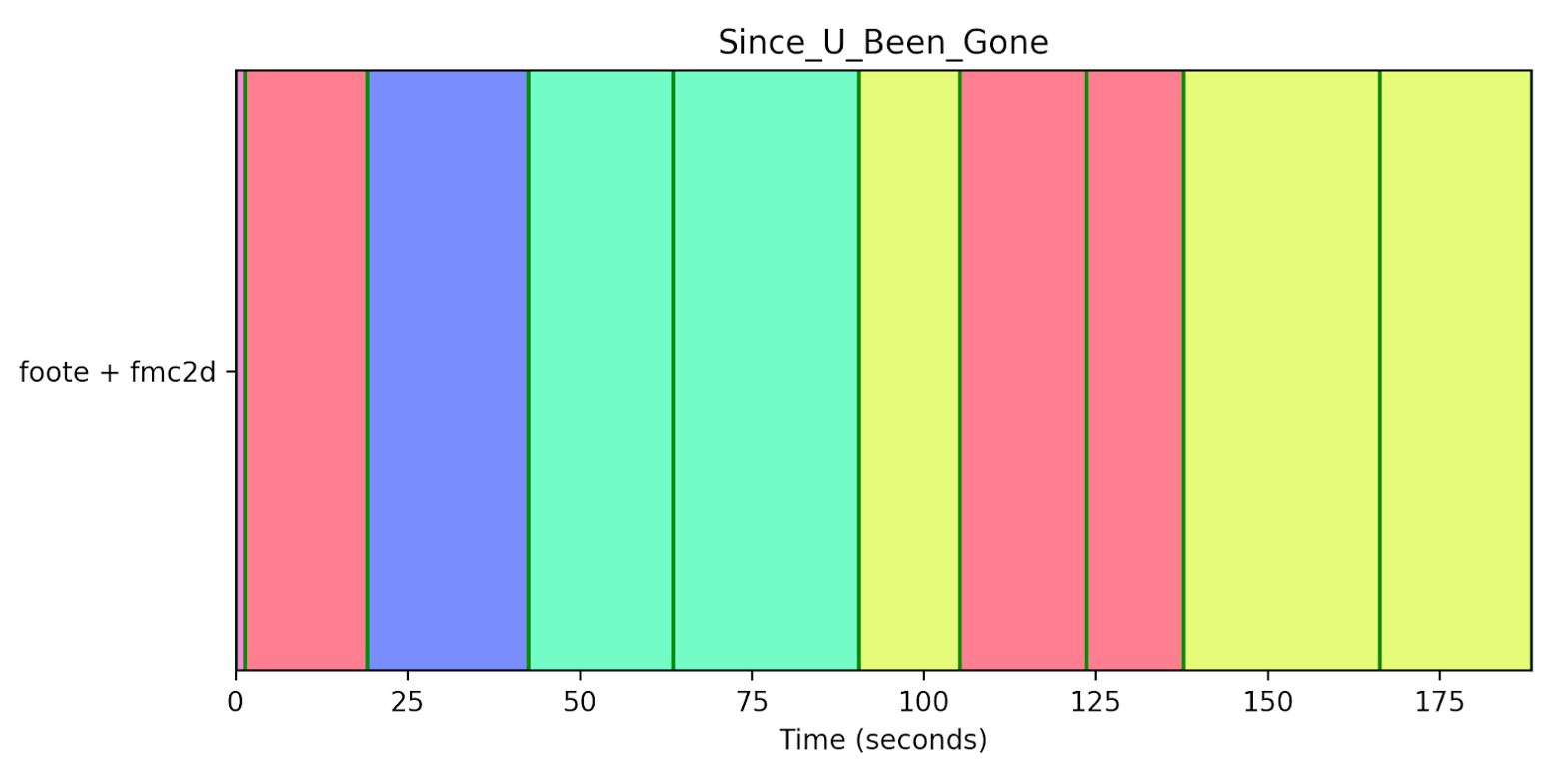

Segments and labels determined for Kelly Clarkson’s song “Since You Been Gone”.
The chorus detector is a simplified version of an algorithm presented by a paper by Masataka Goto. However, the detector determines the chorus based on repetition (the more it repeated, the more likely it was a chorus), not on musical characteristics. This turned out to misidentify choruses on a large majority of songs, so we modified the algorithm to return all repeated segments. We then used Librosa’s beat onset feature to identify which segment was most likely to be the chorus, using the logic that the segment with the highest average beat onset would be considered the chorus.

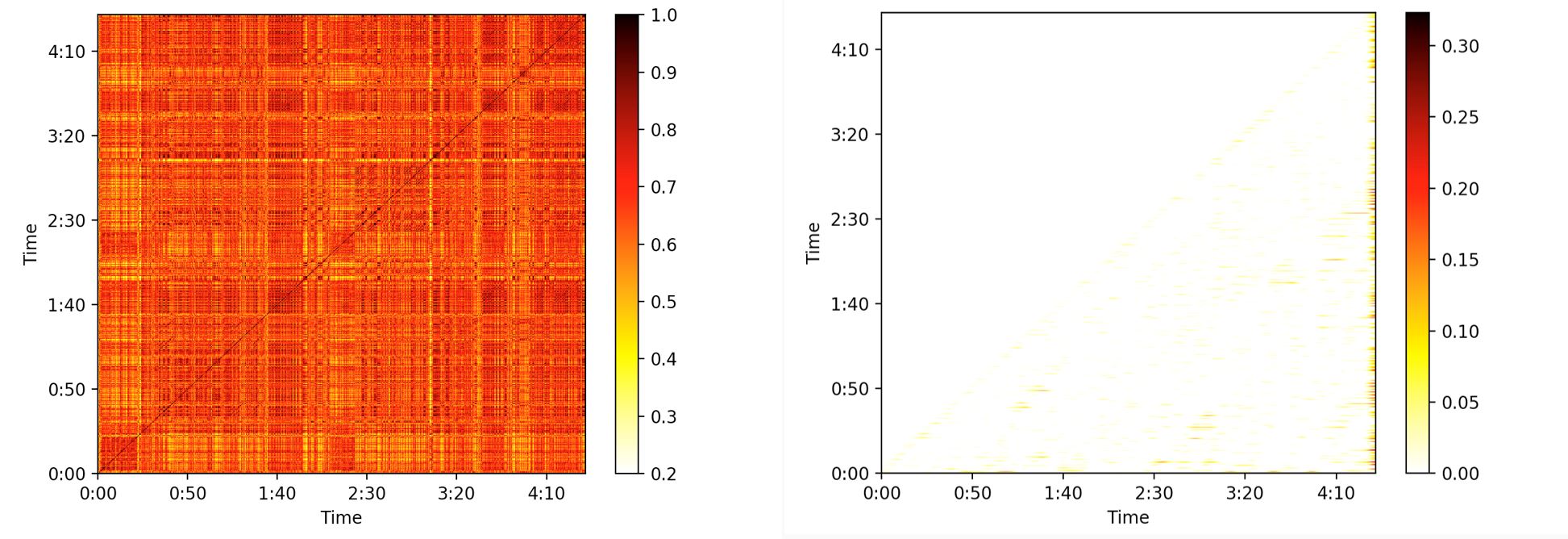

The time-time and denoised time-lag similarity matrices for “I Got a Boy”. The matrices are used to determine the repeating segments within a song.

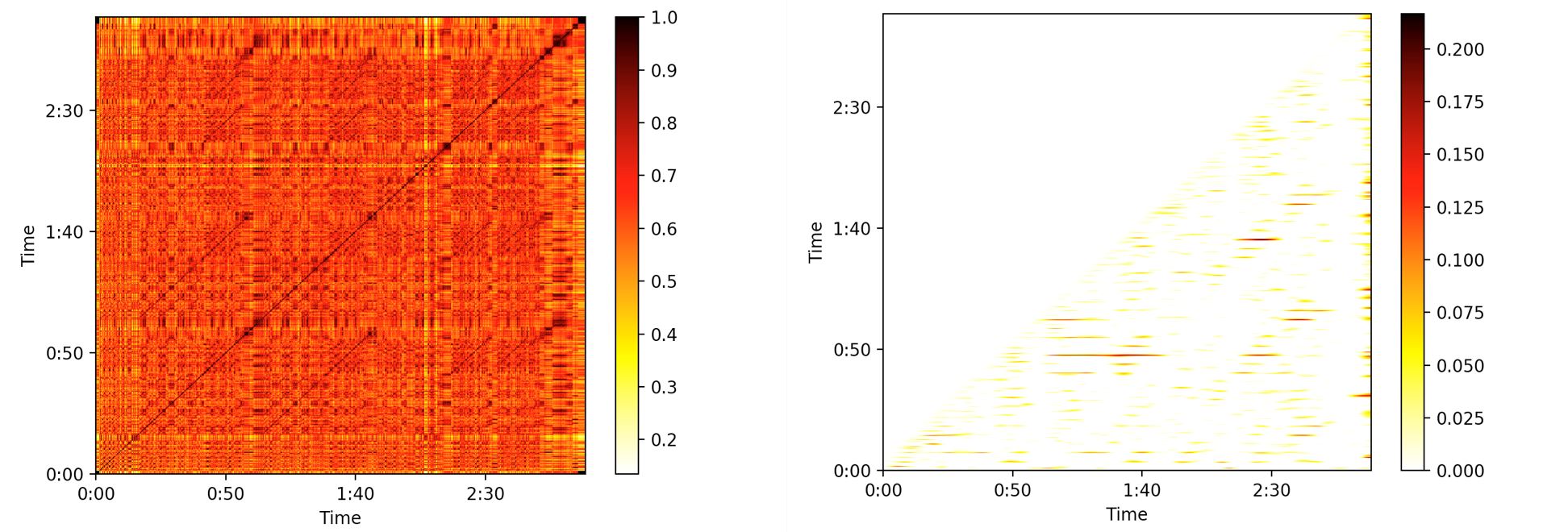

The time-time and denoised time-lag similarity matrices for Kelly Clarkson's "Since You Been Gone".
With the chorus identified, we looped through the detected segments from the segmenter and found the best matching segments to the detected chorus. Segments were matched using dynamic time warping (using a modified version of the algorithm from https://pypi.org/project/fastdtw/). If the similarity between the segment and the detected chorus was under a certain value, then that segment would then be labeled a chorus.
The remaining segments were determined through the previous labels given by the 2D Fourier Magnitude Coefficient labeling algorithm. If a segment was repeating but had not been labeled as a chorus, it was then labeled as a verse. If the segment was unique and in the middle of a song, it was considered a transition. If the first or final segments were unique, they were assigned as “intro” or “outro”, respectively.
The Program
Our program returns a text file delimiting the time stamps of each segment of a song, which we uploaded into Audacity.
User Testing
We ran user testing on 9 subjects, all of whom are college students who listen to pop songs regularly. Each user listened to 2 random pop songs, one with a relatively simple structure one and one with a more complex structure, from 4 different genres of pop: American pop, Japanese pop, Korean pop, and Chinese pop. We used different genre of pop to ensure that user would not be familiar with all the songs. We also wanted to highlight than an understanding of the lyrics of a song would not affect one’s perception of the song’s structure.
The user’s task was to give the start and stop timestamps of each particular section (intro, verse, chorus, transition, outro) that they had heard. The users were told that the song could only have one intro and one outro, but could have any number of verse, chorus, and transition segments. The segments could also not be numbered (i.e. verse 1, chorus 2,. etc).
Results
Here are some examples of comparisons of user labels vs. labels generated from our program. The labels generated from the program are always the labels on the last row (see screenshots). See what you agree with!

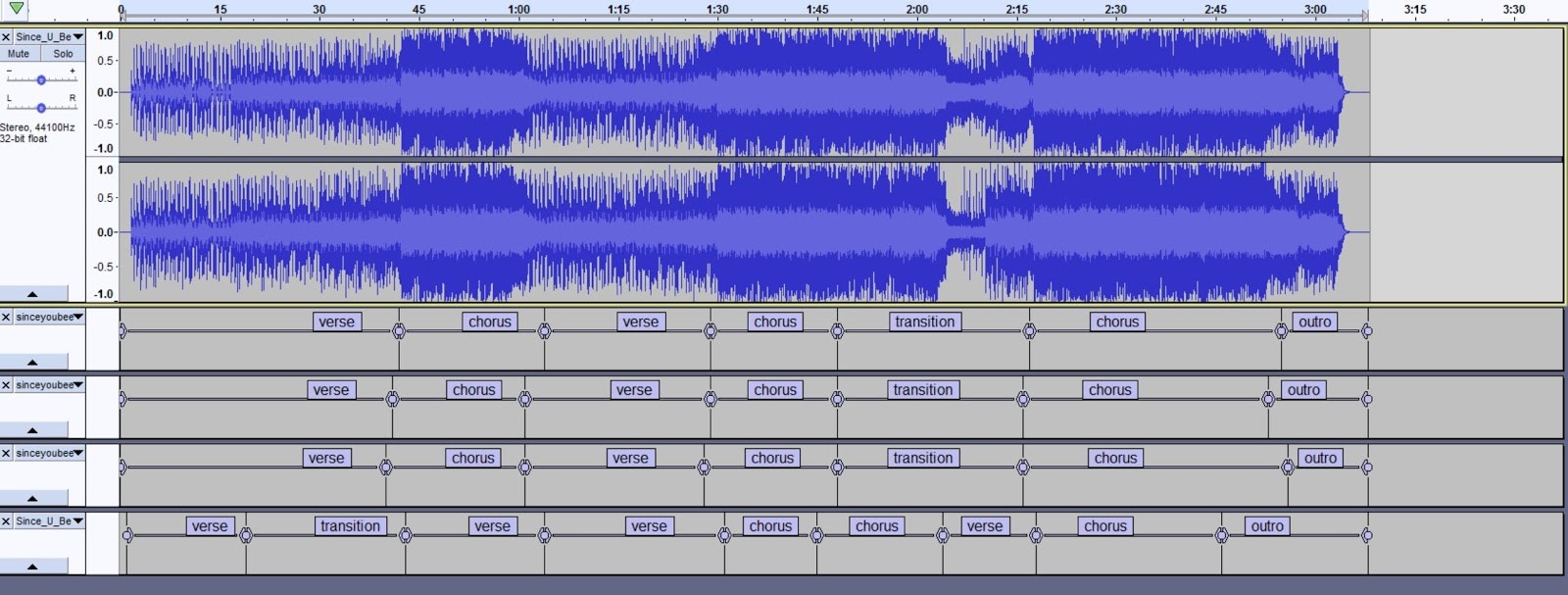

Song (Easy American): Since You Been Gone – Kelly Clarkson
The user and program results are mostly in agreement with each other. While the program splits the song into more segments than the users, the location of the chorus, verses, and outro are mostly similar with the user results. Instrumental changes could have influenced oversegmenting, as there would often be repeated vocal lines but with different instrumental background, and the increased onset often led to mislabelling as a chorus or transition. The mislabeling in this example can be attributed to the instrumental background holding more significance to the program than the vocal line. Another example of this occuring is in the first half of the transition, which the program identifies as a chorus due to the section keeping the chorus’ instrumental.

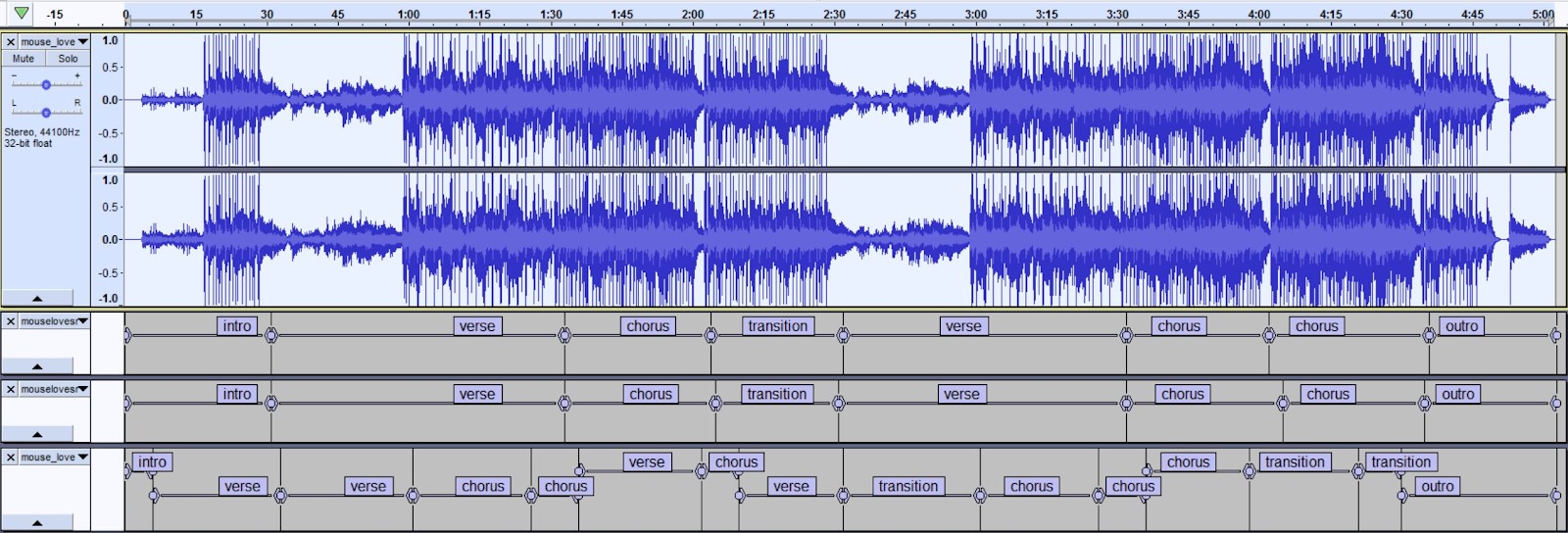

Song (Easy Chinese): Mouse Loves Rice – Yang Chengang
This is an example of how using onset beats to detect a chorus goes wrong. Halfway through the first verse, the melody repeats but the instrumental is replaced with the one found in the chorus. As a result, that part of the verse had the highest average beat onset, leading the program to label it as a chorus. Because the chorus had already been “detected”, the program was unable to identify the real chorus as the chorus, which is why it becomes mislabelled as a verse.

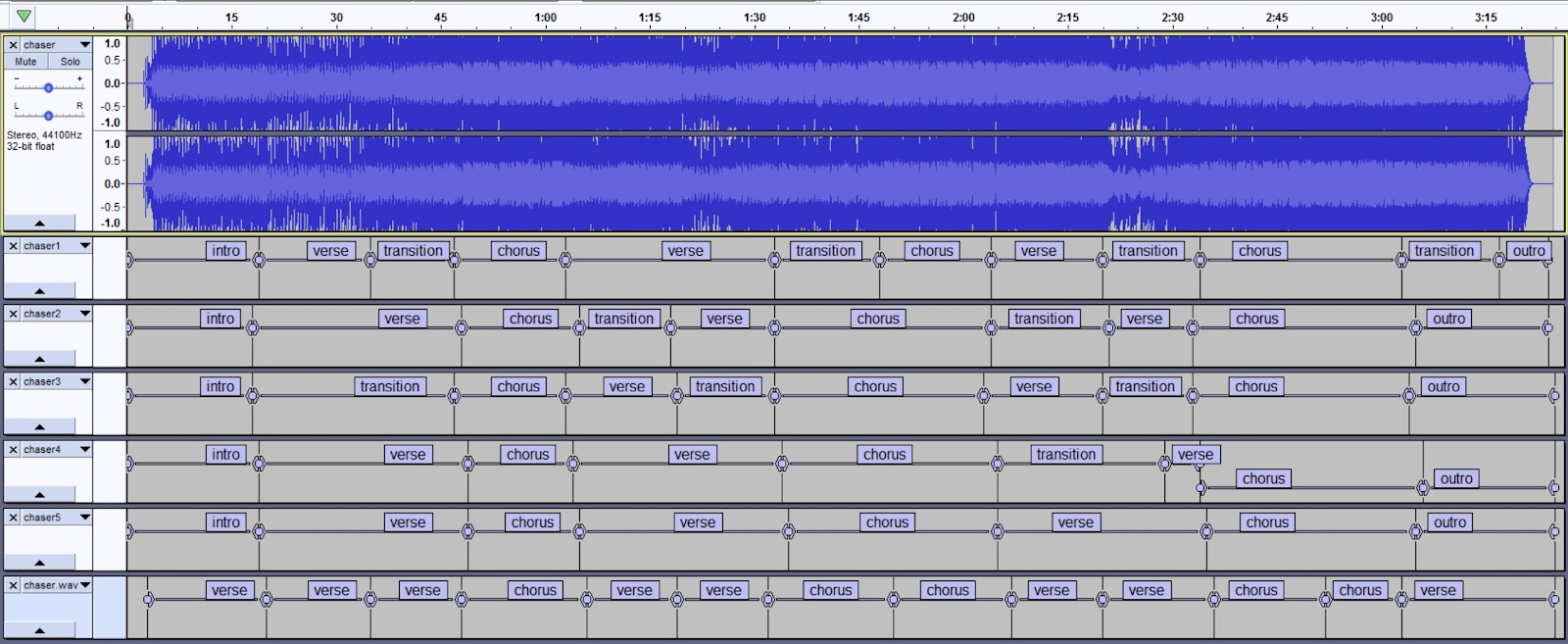

Song (Easy Korean): The Chaser – INFINITE
Example of how the program often oversegments the audio due to frequent change in instrumental.

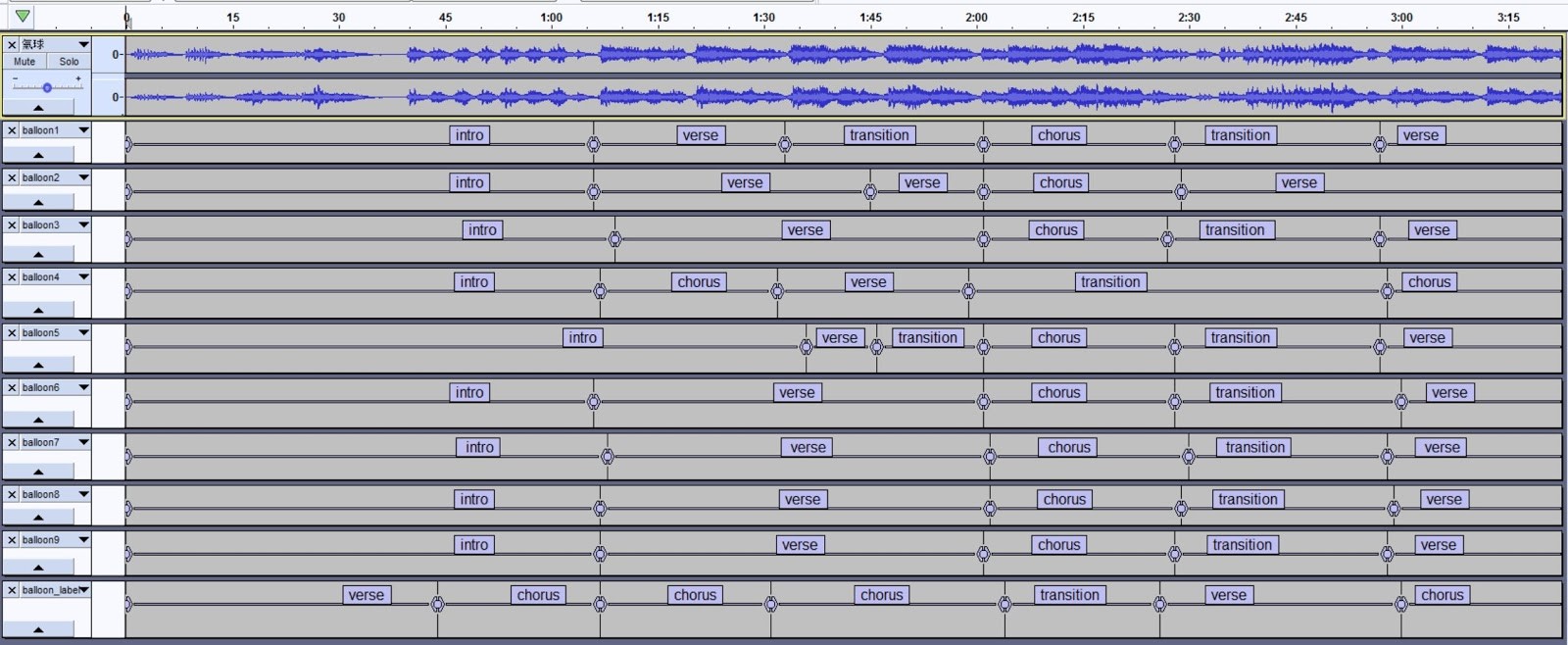

Song (Difficult Chinese): Balloon – Peggy Hsu
This result was an example of the largest number of user testings we had for a single song. It also demonstrates difficulty in providing the correct labels on the program’s part, although the sectioning was similar. This song was a special case - The verse sounds like a chorus , and the actual chorus has little to no motif in it (primarily instrumental with accompanying vocal fills). Also, there was little to no instrumental change that could indicate section change, so the vocal motif in the verse was what most defined the song structure for users. Since the labelling algorithm places little emphasis on the vocal melody, the program had more trouble with this song than the users.

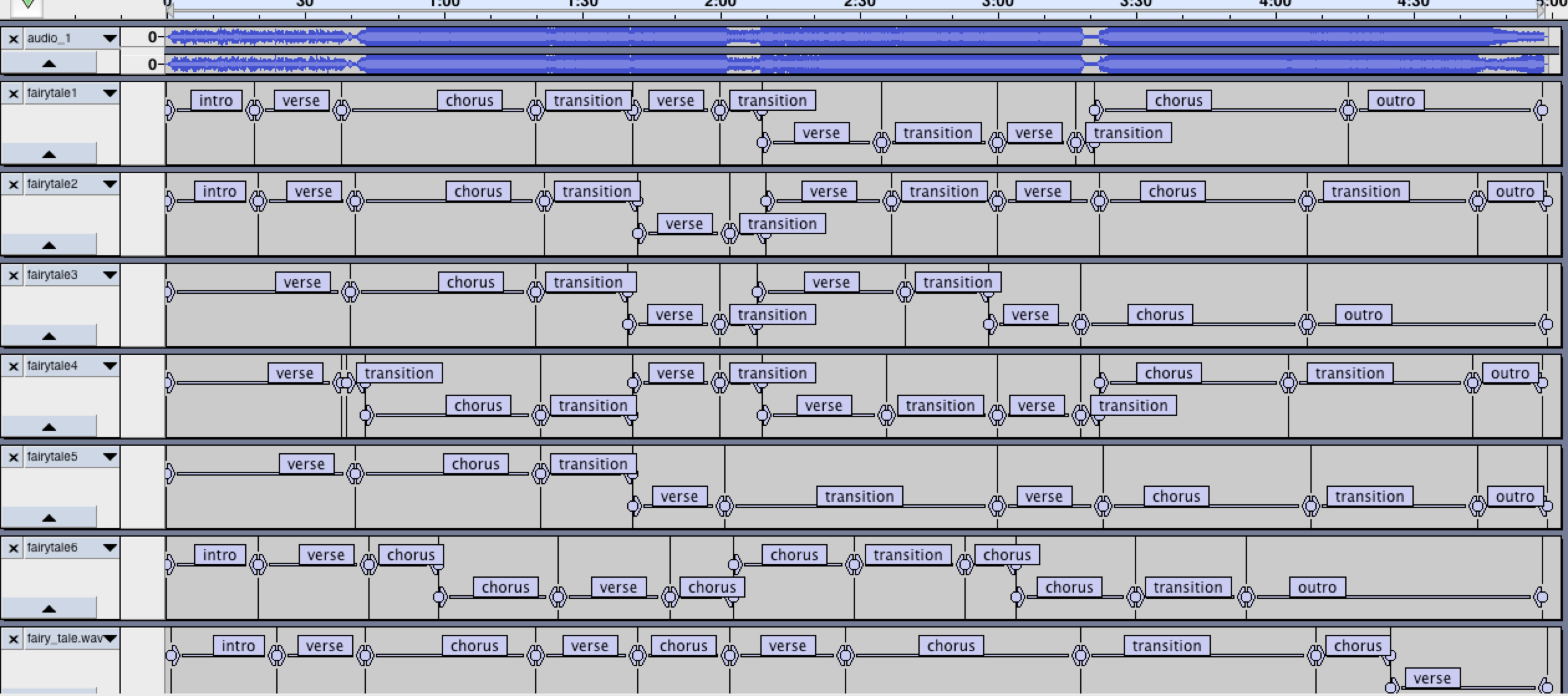

Song (Difficult Japanese): Fairytale – Cilia
This is an example of where neither the users nor the machine agree. In this example, the machine appears to be no further off than the choruses were, mostly labelling a mixture of choruses and verses. The main problem in this example stemmed from users labelling gaps between verses as transitions, although they tended to be too short for the machine to detect it as a whole new section. Furthermore, further work needs to be done to define the intro and outro as things that don’t contain a central vocal line.

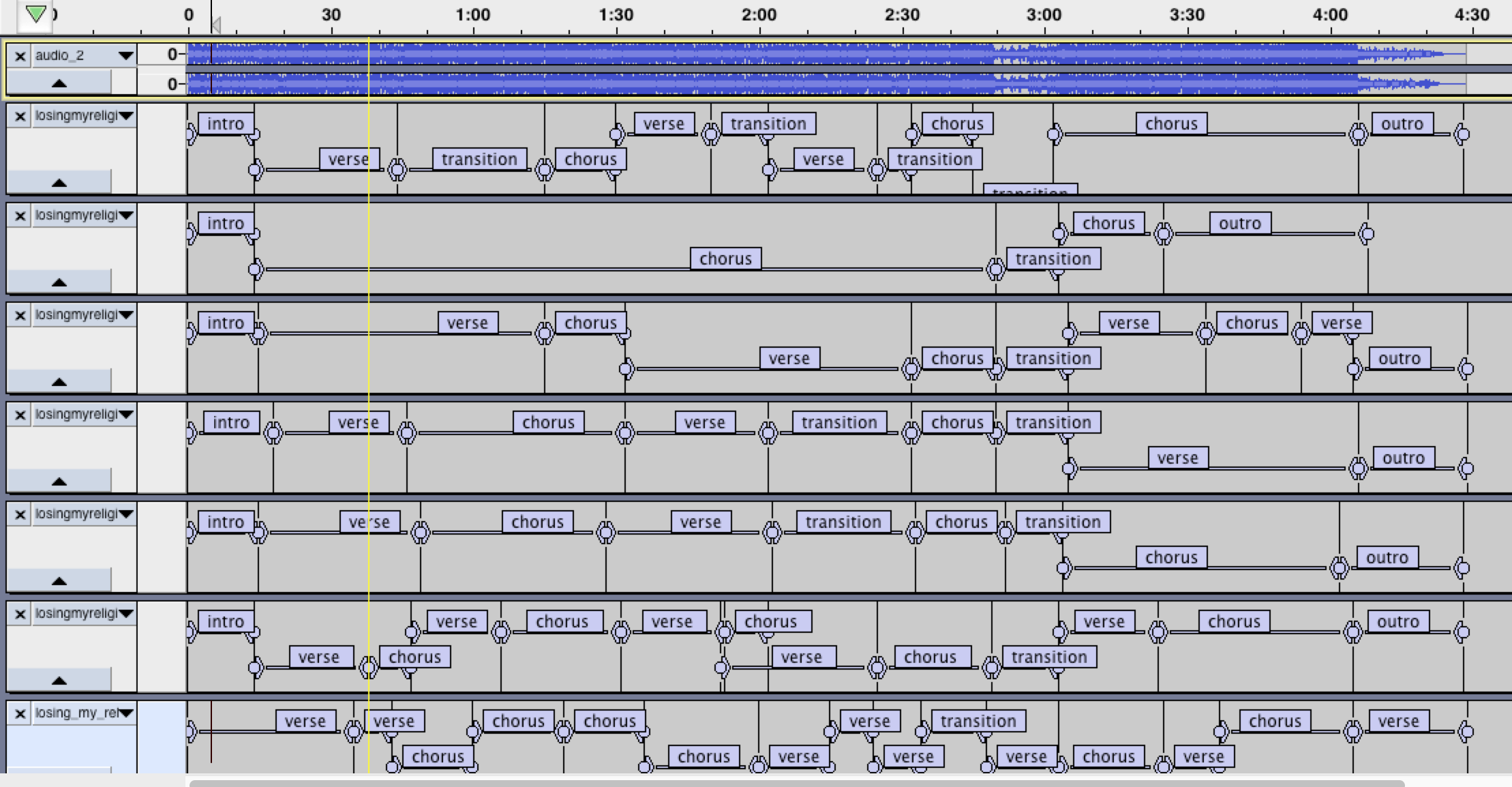

Song (Difficult American): Losing My Religion – R.E.M
Another example in which neither the users nor the computer agree. These test cases were less about testing the accuracy of the computer and more about evaluating its comparison in performance to users when it is not clear to real listeners either. In particular, users disagreed on how many sections there were, and what diferentiated verse from chorus.
Future Work
In the future, we would like to improve our chorus detection algorithm. Currently the two features we use to detect the chorus are beat onsets and repetition, but we would also want to use such features like chord progression, frequency bands, peak strength, and maybe even vocal analysis. We believe the inclusion of such features would help our algorithm match how a regular person would try to segment a song. In general, the checkerboard kernel method was a decent method of segmenting songs, but we could also experiment with different algorithms. We would also want to rely less on the labels given by the 2D-Fourier Magnitude Coefficients algorithm, and use our own method of determining a general song structure. Finally, we would want to expand our user study to have a larger sample population, in order to more clearly see trends and patterns in user labeling.
In Conclusion…
People have extremely different ideas of how a song is structured, especially for hard songs; someone’s verse might be someone else’s chorus. Some users’ labels even are similar to those generated by the program while very different from other users’ labels. In the end, what really defines song structure? How can we even identify common segments within a song, such as a “verse”, “chorus”, and “transition”? While there may not be a single general method of determining structure, it is valuable to study how different users can perceive them, and if one can get machines to replicate such reasoning.
